MG11 Drives

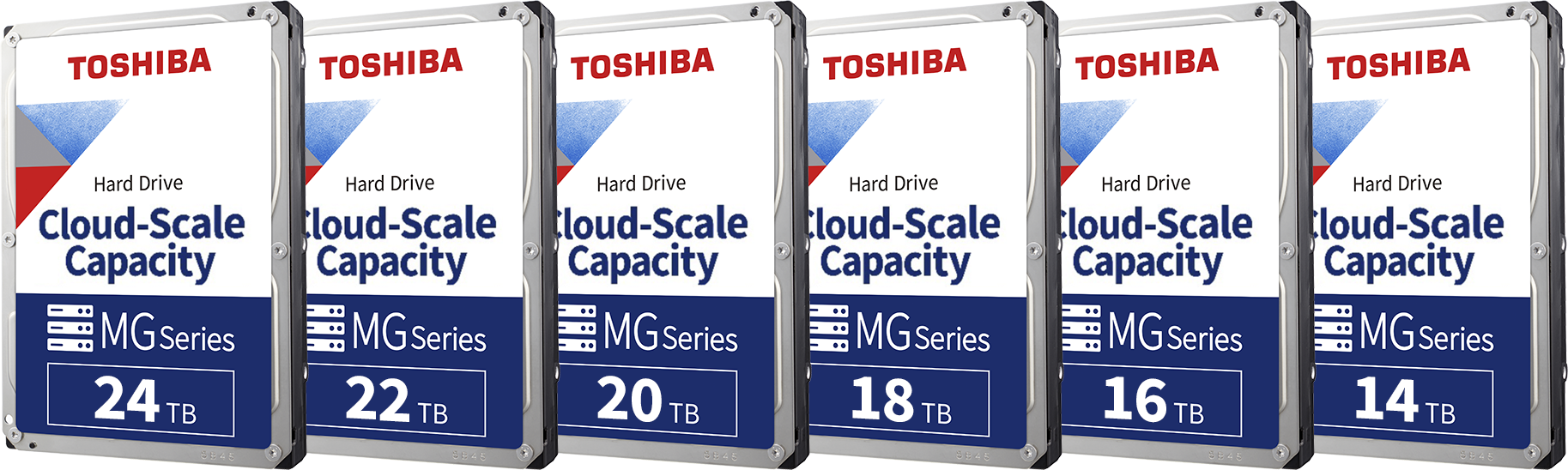

Toshiba MG11 Series Hard Disk Drives

  • Up to 24TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Industry Standard 3.5-inch 26.1 mm height Form Factor
  • 550 Total TB Transferred per Year Workload Rating
  • 7200rpm Performance
Switch to Toshiba
MG11 Drives

It’s easy to switch to Toshiba.

We’ve made it easy for you to switch to the best, most cost-effective Enterprise HDDs for your business.
Make the switch to Toshiba HDDs today.

MG10

Toshiba MG11 Series Hard Disk Drives

  • Up to 24TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Industry Standard 3.5-inch 26.1 mm height Form Factor
  • 550 Total TB Transferred per Year Workload Rating
  • 7200rpm Performance
HDD Icon

Massive Capacity

Up to 24 TB of Conventional Magnetic Recording (CMR) capacity. Available in SATA models with 512e or 4Kn Advanced Format Sector Technology.

shield icon

Enterprise Grade Reliability

Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events (512e models).

Industry Leading Design

Industry Leading Mechanical Design

10-disk design for superior storage density.

Drag Drop Icon

Toshiba Precision Laser Welding Technology

Seals helium inside the 10-disk mechanics to reduce aerodynamic drag and deliver a lower operational power profile.

ribbon icon

Lower Total Cost of Ownership (TCO)

Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO.

Rethink Your Data Storage Toshiba Enterprise HDDs

Built on 50 years of Toshiba’s HDD innovation, the MG11 Series delivers new levels of capacity, performance, and quality. Packing up to 24TB into a standard 3.5-inch conventional magnetic recording (CMR) HDD, the MG11 Series enables cloud-scale infrastructure to build higher storage densities at lower TCO. The MG11 Series features up to a 10-disk helium-sealed 3.5-inch design, which leverages Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR™) technology to achieve 2.4TB per disk. Built to meet growing data storage demands, the MG11 Series has a high workload rating of 550TB with 7200 rpm, and is available in 6Gbps SATA and 12Gbps SAS interfaces. Engineered for 24/7 quality and enterprise reliability, the MG11 Series has an MTTF of 2.5 million hours. SED and SIE options are available to secure data and deliver peace of mind. In addition to 24TB, the MG11 is available in 22TB, 20TB, 18TB, 16TB, and 14TB in both SAS and SATA interfaces with SIE and SED options..

Data Doesn't Stop Video
Enterprise HDD Drive

Harness the Power

  • Industry Standard 3.5-inch 26.1mm height Form Factor
  • 550 Total TB Transferred per Year Workload Rating
  • 7200 rpm Performance
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
Learn More

Toshiba MG10 Series Hard Disk Drive

Specifications

Available Capacities 24 TB, 22 TB, 20 TB, 18 TB, 16 TB, 14 TB
Form Factor 3.5-inch
Buffer Size 1 GiB

Rotation Speed 7200 rpm
MTTF/MTBF(AFR) 2 500 000 h (0.35%)
Weight (Max) 730g




Features

  • Up to 24 TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba 2nd generation Flux Control Microwave-assisted Magnetic Recording (FC-MAMR™) Technology
  • Industry-leading 10-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1 mm height Form Factor
  • 7200 rpm Performance
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

Models

Capacity Interface Format Type Model Number
24TB SAS-3 and later 512e/4Kn* Standard MG11SCA24TE
24TB SAS-3 and later 512e/4Kn* SIE MG11SCA24TEY
24TB SAS-3 and later 512e/4Kn* SED MG11SCP24TE
22TB SAS-3 and later 512e/4Kn* Standard MG11SCA22TE
22TB SAS-3 and later 512e/4Kn* SIE MG11SCA22TEY
22TB SAS-3 and later 512e/4Kn* SED MG11SCP22TE
20TB SAS-3 and later 512e/4Kn* Standard MG11SCA20TE
20TB SAS-3 and later 512e/4Kn* SIE MG11SCA20TEY
20TB SAS-3 and later 512e/4Kn* SED MG11SCP20TE
18TB SAS-3 and later 512e/4Kn* Standard MG11SCA18TE
18TB SAS-3 and later 512e/4Kn* SIE MG11SCA18TEY
18TB SAS-3 and later 512e/4Kn* SED MG11SCP18TE
16TB SAS-3 and later 512e/4Kn* Standard MG11SCA16TE
16TB SAS-3 and later 512e/4Kn* SIE MG11SCA16TEY
16TB SAS-3 and later 512e/4Kn* SED MG11SCP16TE
14TB SAS-3 and later 512e/4Kn* Standard MG11SCA14TE
14TB SAS-3 and later 512e/4Kn* SIE MG11SCA14TEY
14TB SAS-3 and later 512e/4Kn* SED MG11SCP14TE



Capacity Interface Format Type Model Number
24TB SATA-3.5a 512e/4Kn* Standard MG11ACA24TE
24TB SATA-3.5a 512e/4Kn* SIE MG11ACA24TEY
24TB SATA-3.5a 512e/4Kn* SED MG11ACP24TE
22TB SATA-3.5a 512e/4Kn* Standard MG11ACA22TE
22TB SATA-3.5a 512e/4Kn* SIE MG11ACA22TEY
22TB SATA-3.5a 512e/4Kn* SED MG11ACP22TE
20TB SATA-3.5a 512e/4Kn* Standard MG11ACA20TE
20TB SATA-3.5a 512e/4Kn* SIE MG11ACA20TEY
20TB SATA-3.5a 512e/4Kn* SED MG11ACP20TE
18TB SATA-3.5a 512e/4Kn* Standard MG11ACA18TE
18TB SATA-3.5a 512e/4Kn* SIE MG11ACA18TEY
18TB SATA-3.5a 512e/4Kn* SED MG11ACP18TE
16TB SATA-3.5a 512e/4Kn* Standard MG11ACA16TE
16TB SATA-3.5a 512e/4Kn* SIE MG11ACA16TEY
16TB SATA-3.5a 512e/4Kn* SED MG11ACP16TE
14TB SATA-3.5a 512e/4Kn* Standard MG11ACA14TE
14TB SATA-3.5a 512e/4Kn* SIE MG11ACA14TEY
14TB SATA-3.5a 512e/4Kn* SED MG11ACP14TE


** Default format is 512e. Convertible to 4kn format.

Applications

  • Data Center Applications
  • Big Data
  • Video Surveillance
  • Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
  • Compliance Data Archives and Data Life-Cycle Management Storage Systems
  • Data Back-up Infrastructure
